PRODUCT FUNCTIONS
 SiRF III GPS and Quad Band GSM 850/900/1800/1900Mhz
 AGPS (with GSM Base Station ID)
 Track by SMS/GPRS (MEITRACK Protocol)
 Track on Demand
 Track by Time Interval
 Track by Distance Interval
 Track on Mobile Phone
 Listen-in (Voice Monitoring) or Two-way Audio (Optional)
 Internal 4Mb Memory for Logging
 Inbuilt Motion Sensor
 850mAh Internal Backup Battery
 SOS Alarm
 Geo-fence Alarm
 GPS Blind Area Alarm
 Low Battery Alarm
 Speeding Alarm
 Impact Alarm
 Tow Alarm
 GPS Antenna Cut Alarm
 External Power Cut Alarm
 Mileage Report
 Engine Cut (Engine immobilization)
 Inbuilt Super Magnet (optional)
 5 Digital Inputs (2 positive triggering and 3 negative triggering)
 5 Outputs
 2 Analog Inputs Detection

SPECIFICATIONS

Items	Specifications
Dimension	105 x 65 x 26 mm
Weight	190 g.
Charging Voltage	DC 9V - 36V/1.5mA
Back-up Battery	850mAh/3.7V
Power Consumption	65mA Standby current
Operating Temperature	-20°C-55°C
Humidity	5%-95%
Work Time	43 hours in power-saving mode and 10 hours in normal mode
LED	2 LED lights to show GPS, GSM and other status
Buton	1 SOS and 1 power on/off
Microphone	Optional
Memory	4MBytes
Sensor	Motion sensor & Impact sensor
GSM Frequency	GSM 850/900/1800/1900MHz
GPS Chip	Latest GPS SIRF-Star III chipset
GPS Sensitivity	-159dB
Positioning Accuracy	10 meters, 2D RMS
I/O	5 Digital Inputs (2 positive triggering and 3 negative triggering)   2 Analog Input Detection   5 Outputs   1 USB port

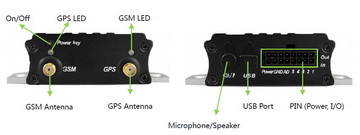

MVT380 View
